Structured Knowledge Bases

Structured Knowledge Bases allow you to transform your relational data and structured datasets into intelligent, queryable data in the Amorphic Cloud Platform. This feature uses advanced AI technology to create, manage, and query knowledge bases from Redshift and S3-Athena datasets using natural language queries that are automatically converted to SQL. Whether you're building a data analytics interface, creating a business intelligence Q&A system, or making your structured data more accessible, structured knowledge bases provide the tools to interact with your data using natural language.

With Structured KnowledgeBase, you can:

• Create and manage knowledge bases with structured data sources (Redshift and S3-Athena)
• Sync and index your database schemas and table metadata
• Query knowledge bases using natural language that gets converted to SQL
• Get intelligent responses based on your actual data
• Manage access permissions and resource associations

This guide will walk you through everything you need to know to leverage Structured KnowledgeBase's capabilities effectively.

Knowledge Base Operations

Amorphic provides the following operations for Structured Knowledge Base:

Operation	Description
Create Structured Knowledge Base	Creates a structured knowledge base in AWS Bedrock with Redshift or S3-Athena data store configuration.
View Structured Knowledge Base	View the details of an existing structured knowledge base.
Update Structured Knowledge Base	Update an existing structured knowledge base configuration.
Add Sources	Add new data sources to an existing knowledge base.
Sync Knowledge Base and Sources	Sync data sources in a knowledge base to update schema metadata.
View Sync Status	View sync status for a knowledge base.
Query Knowledge Base	Query a knowledge base using natural language and get SQL-generated responses.
Remove Sources	Remove data sources from a knowledge base.
Delete Knowledge Base	Delete an existing knowledge base.

Getting Started

Overview

Structured KnowledgeBase is an AI-powered data repository system that enables you to:

• Transform your structured datasets (Redshift and S3-Athena) into queryable knowledge bases
• Query your data using natural language that is automatically converted to SQL
• Get intelligent responses based on your actual data content
• Sync and index schema changes and new data
• Manage multiple sources within a single knowledge base

The system integrates with AWS Bedrock to provide advanced natural language to SQL conversion capabilities, making your structured data more accessible without requiring SQL knowledge.

Note

All sources must be properly registered in the Amorphic platform and accessible to your user account. The system automatically handles schema discovery and metadata indexing during the sync process. Structured knowledge bases use SQL query generation rather than vector-based retrieval, providing more deterministic and accurate results for structured data.

Key Features

Knowledge Base Management

Structured KnowledgeBase provides comprehensive management capabilities for creating, updating, and maintaining your data repositories.

Feature	Description
Knowledge base creation	Create new knowledge bases with Redshift or S3-Athena data store configuration
Source association	Attach multiple Redshift or S3-Athena datasets to a knowledge base
Sync management	Sync and index schema metadata with status tracking
Access control	Manage permissions and user access to knowledge bases

Note

• Knowledge bases are created with unique identifiers and can contain multiple data sources
• Sync operations are performed sequentially to avoid conflicts
• Sync operations for structured knowledge bases always sync all data sources
• Sync for structured knowledge base does not give file-level details under sync job runs
• All operations are logged for audit and compliance purposes
• The knowledge base generates SQL queries that are read-only (SELECT operations only)

Natural Language to SQL Querying

Structured KnowledgeBase leverages advanced LLMs to enable natural language interactions with your structured data:

Feature	Description
Natural language processing	Query your data using plain English
SQL generation	Automatic conversion of natural language to SQL queries
Deterministic results	More predictable and accurate results compared to vector-based retrieval
Data-driven responses	Get answers based on your actual data content

Source Synchronization

The system provides robust synchronization capabilities for keeping your knowledge bases up-to-date with schema changes:

Feature	Description
Schema discovery	Detects and indexes new or modified tables and columns
Metadata indexing	Process database schema and table metadata
Status tracking	Monitor sync progress and completion status
Error handling	Retry logic with exponential backoff
Email notifications	Notify owners and editors of sync completion

Important

Schema changes (new tables or columns) require manual sync operations to be reflected in the knowledge base. If metadata is not modified, query results are up-to-date regardless of sync status.

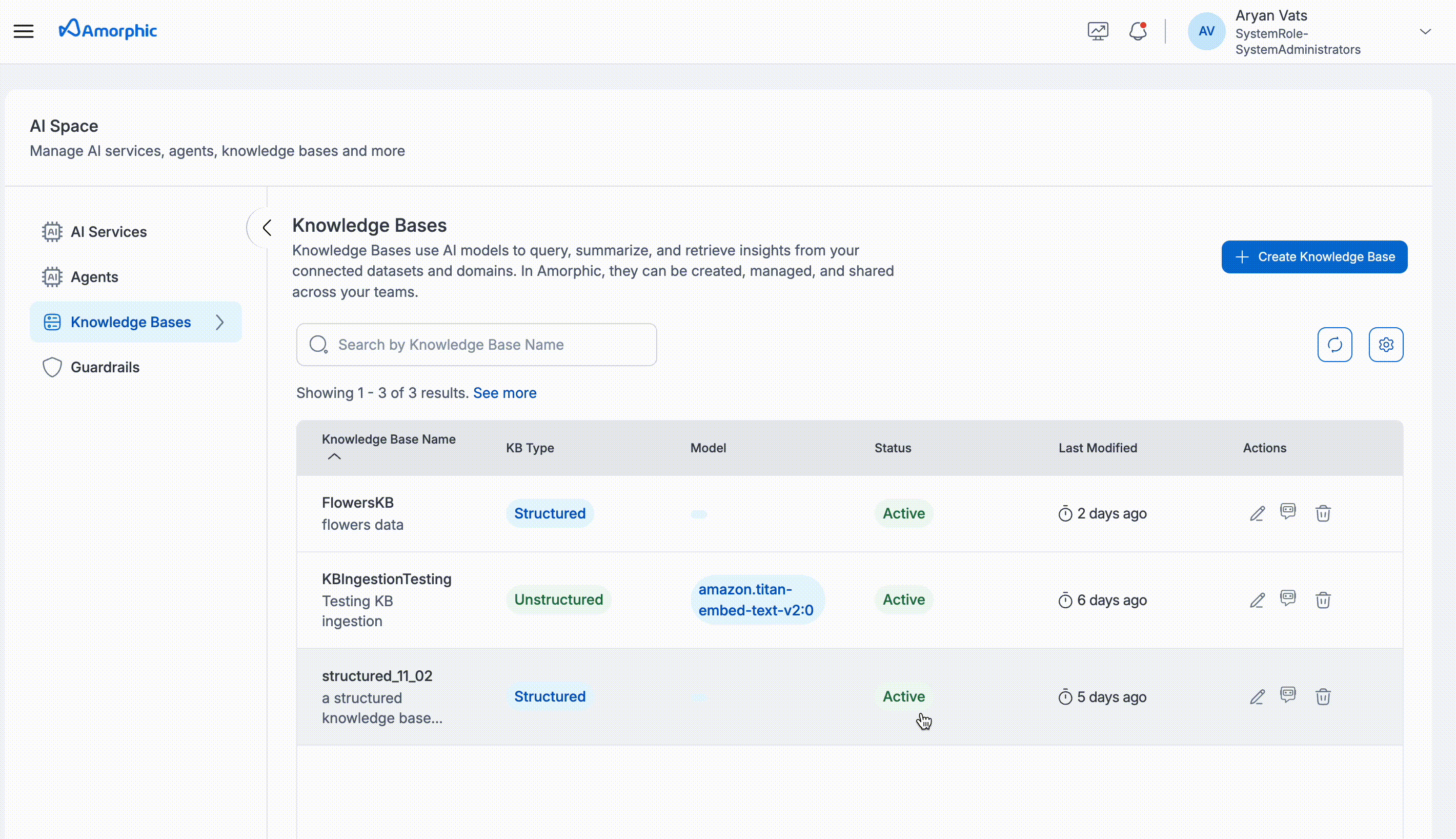

Create Structured Knowledge Base

To create a Structured Knowledge Base:

1. Navigate to the AI Services section in the left sidebar
2. Select Knowledge Bases from the available options
3. Click on + Create Knowledge Base.
4. Fill in the details shown in the table:

Attribute	Description
Knowledge Base Name	Give your knowledge base a unique name.
Description	Describe the knowledge base's purpose and relevant details.
Knowledge Base Type	Choose Structured as the knowledge base type.
Data Store Type	Select the data store type: • Redshift: For Redshift datasets • S3-Athena: For S3-Athena datasets (via Glue Data Catalog)
Keywords	Add relevant keywords to the knowledge base.
Tenant Name	Tenant of the data on which the knowledge base can operate (for redshift data store type only)
Guardrail	Select a relevant guardrail for the knowledge base. If no guardrail is specified, the system will apply a default guardrail automatically. Note: Guardrails support input/output text filtering but not SQL-level query constraints.

SQL Query Generation

• Structured knowledge bases automatically convert natural language queries to SQL
• Only SELECT queries are generated (read-only operations)
• The system validates user access to datasets referenced in the generated SQL query
• Cross-tenant queries are not supported for redshift - for structured knowledgebases with data store redshift, the knowledge base can only query one tenant.

Description Best Practices

• Provide a clear and detailed description that accurately reflects the content and purpose of your knowledge base sources
• A well-written description helps users understand the knowledge base scope and enables agents to effectively access and utilize the information
• Include key topics, data types, and intended use cases in the description for better discoverability

Data Store Limitations

• Single Tenant Scope: Each redshift structured knowledge base can connect to only one tenant, selected at creation time
• Views Not Supported: Redshift views are not indexed or queried by the knowledge base
• One Query Per Response: Within one response, the knowledge base can only execute one SQL query

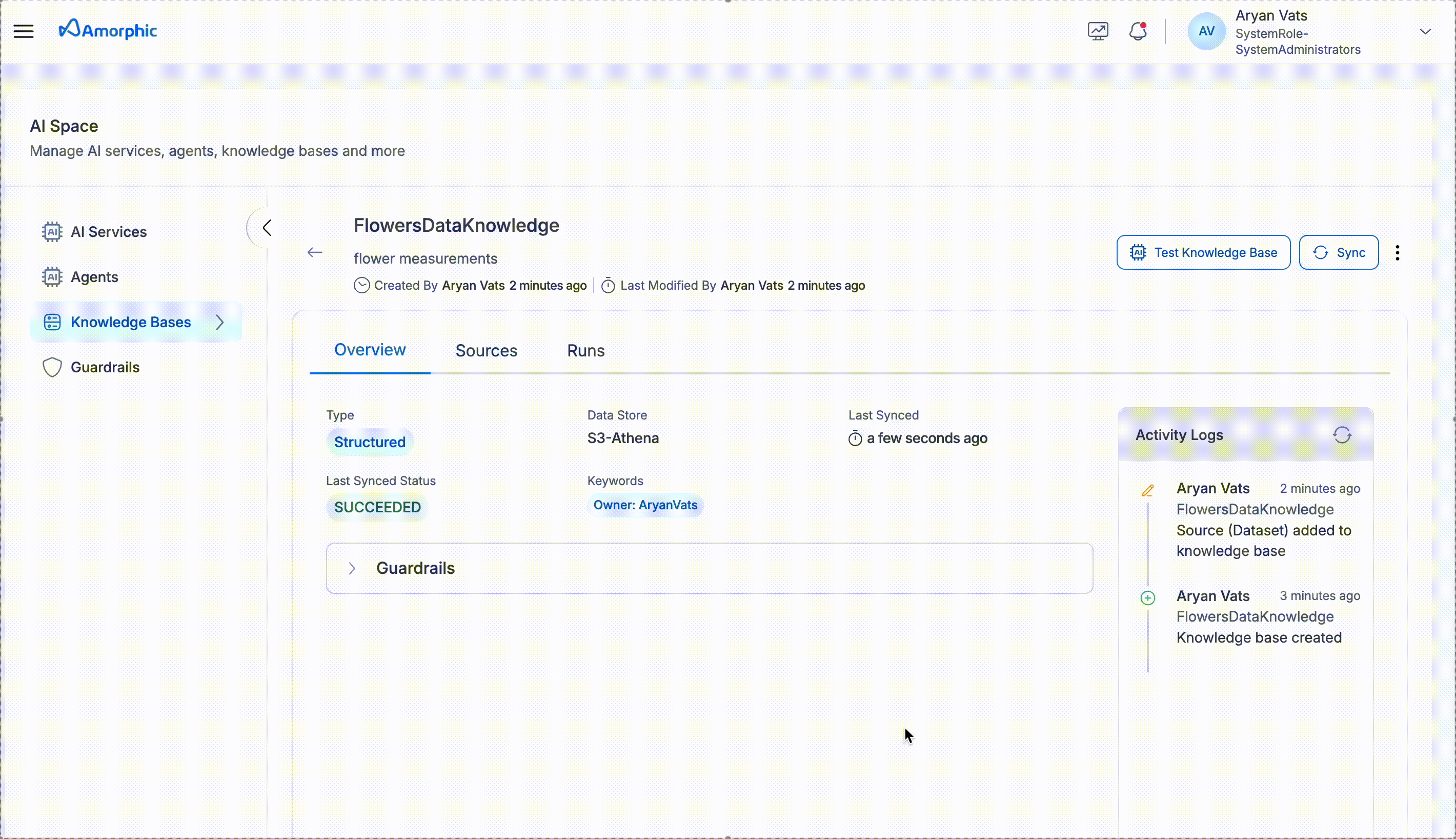

View Structured Knowledge Base

The Structured Knowledge Base details page provides comprehensive information organized into three main tabs:

Tab	Component	Description
Overview	Basic Information	Knowledge Base Name: Unique identifier Description: Purpose and content details Created: Creator and creation date Updated: Last modifier and modification date
	Data Store Information	Data Store Type: Redshift or S3-Athena Database Name: Connected database identifier Last Synced: Most recent sync timestamp Last Synced Status: Current sync state (SUCCEEDED/FAILED/IN_PROGRESS)
	Keywords	Associated tags and owner information
	Summary Cards	Sources Added: Total attached sources Tables Discovered: Total tables indexed Last Sync Time: Most recent sync operation timestamp
Sources	Source Management	Information about connected data sources and their status
Runs	Sync Operations	Details about synchronization operations and their outcomes
Activity Logs	Timeline Events	Creation events Source addition records Sync operation history Knowledge base modifications Each log entry includes: User who performed the action Action description and timestamp

The Knowledge Base details page provides comprehensive information about your knowledge base, including its configuration, metrics, and activity history. The page is organized into three main tabs: Overview, Sources, and Runs.

Note

• The Overview tab provides the most comprehensive view of your knowledge base status and performance
• Use the Test Knowledge Base button to verify your knowledge base is working correctly
• Monitor the Activity Logs to track all changes and operations performed on your knowledge base
• The metrics help you understand the scope and health of your indexed schema metadata

Update Structured Knowledge Base

To update a Structured Knowledge Base (for example, its description or guardrail):

1. Navigate to the Knowledge Base details page
2. Click on the Edit action button
3. Update the description and/or guardrail as needed
4. Click Save to apply the changes

Note

Only the description field and guardrail can be modified after a knowledge base is created. The name and data store configurations cannot be changed.

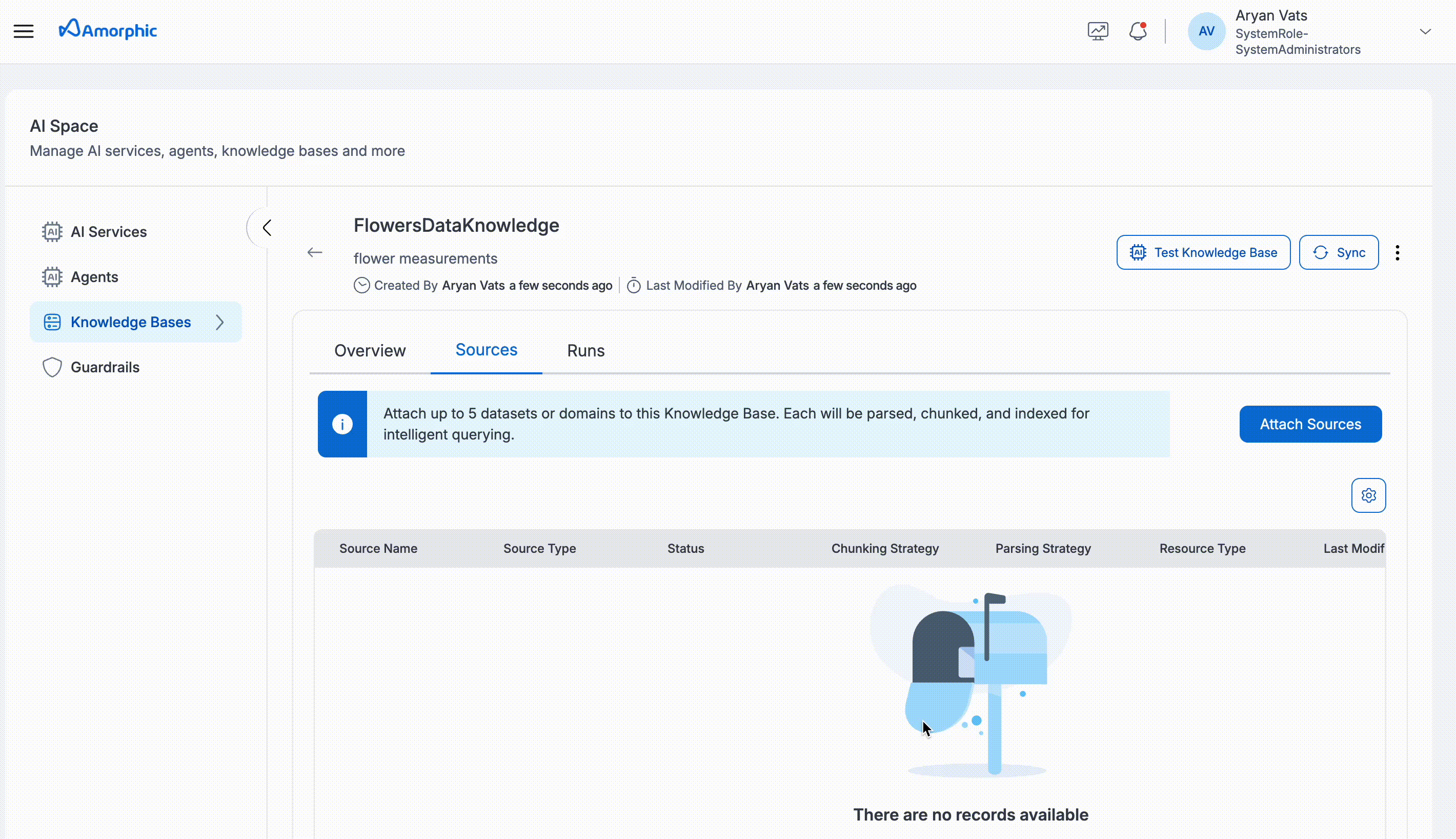

Add Sources

To add sources to your Structured Knowledge Base:

1. Navigate to the Knowledge Base details page
2. Click the Add Source button
3. Select your source type (Redshift Dataset or S3-Athena Dataset)
4. Configure the required fields
5. Click Save to attach the source

The following fields need to be configured when adding a source:

Field	Description
Source Type	Select between Redshift Dataset or S3-Athena Dataset as the source type
Name	Provide a unique identifier for the source
Description	Add details about the source content and purpose

General Notes

Important limitations:

• Currently, only Redshift and S3-Athena datasets are supported as data sources
• Maximum 5 sources can be attached per knowledge base
• If a domain is selected as a source, individual datasets from that domain cannot be added separately
• This limitation helps optimize query performance across the knowledge base
• All sources must be of the same data store type (either all Redshift or all S3-Athena)
• Domain-level and tenant-level access can be granted, provided all entities lie within the same tenant

Access Control

The knowledge base enforces strict access control:

• The KB does not get access to any data not attached to the KB as a data source, even if the data is present under the same tenant
• The KB is given limited permissions to prevent editing of data (read-only SELECT operations)
• Access permissions are validated when queries are executed

source constraints unique to structured knowledgebases

• For structured knowledgebases, only datasets of target location matching the data store type may be attached
• For Redshift knowledgebases, only datasets/domains located in the same tenant as the one selected during creation may be attached
• When a domain is attached, only the datasets with target location matching the data store type of the knowledgebase will be indexed

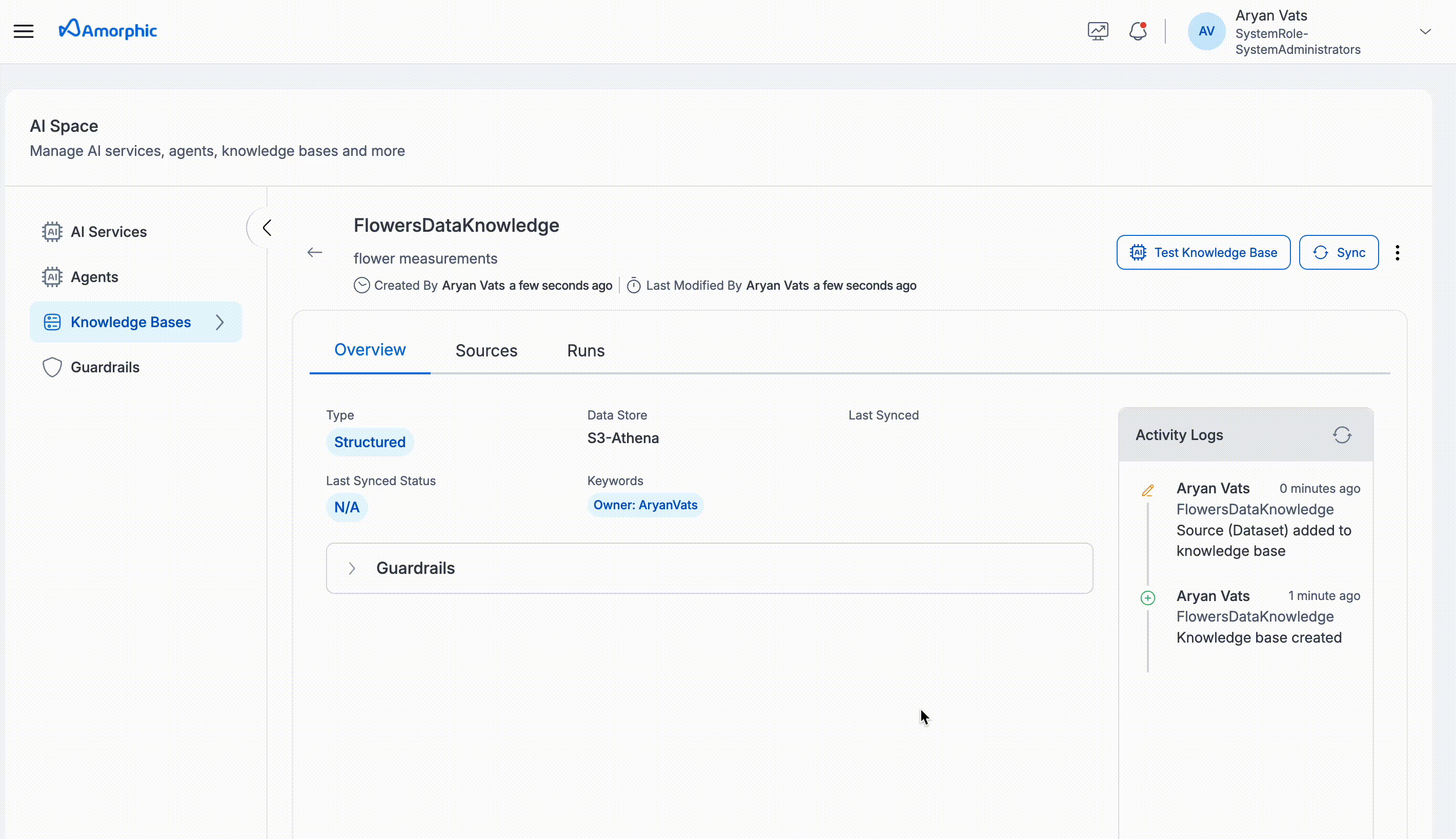

Sync Knowledge Base and Sources

Complete Knowledge Base Sync

Step	Action	Details
1	Initiate	Click Sync at knowledge base level
2	Monitor	Track progress in Runs tab

Note

Important considerations:

• Structured knowledge bases cannot sync individual sources, only complete knowledge base
• Only one sync operation can run at a time per knowledge base
• Sync duration can take up to a maximum of 6 hours
• Sync duration depends on the number of tables and schema complexity
• Sync operations run sequentially to prevent conflicts
• If a sync operation times out, please try syncing again
• Schema changes (new tables/columns) require manual sync to be reflected
• Email notifications confirm completion
• Failed syncs automatically retry with exponential backoff
• If metadata is not modified, query results are up-to-date regardless of sync status provided that it is not the first sync

View Sync Status

File-wise metrics for structured KB sync jobs are not available from AWS's side, but the status of the sync job can be viewed from 'Runs'

Monitoring Dashboard

Navigate to the Runs tab to view comprehensive sync details:

Information	Description
Source Name	knowledge base
Execution Scope	Datasource/KnowledgeBase
Status	Current sync status
Start Time	Operation start timestamp
End Time	Operation completion timestamp
Synced By	User who initiated the sync

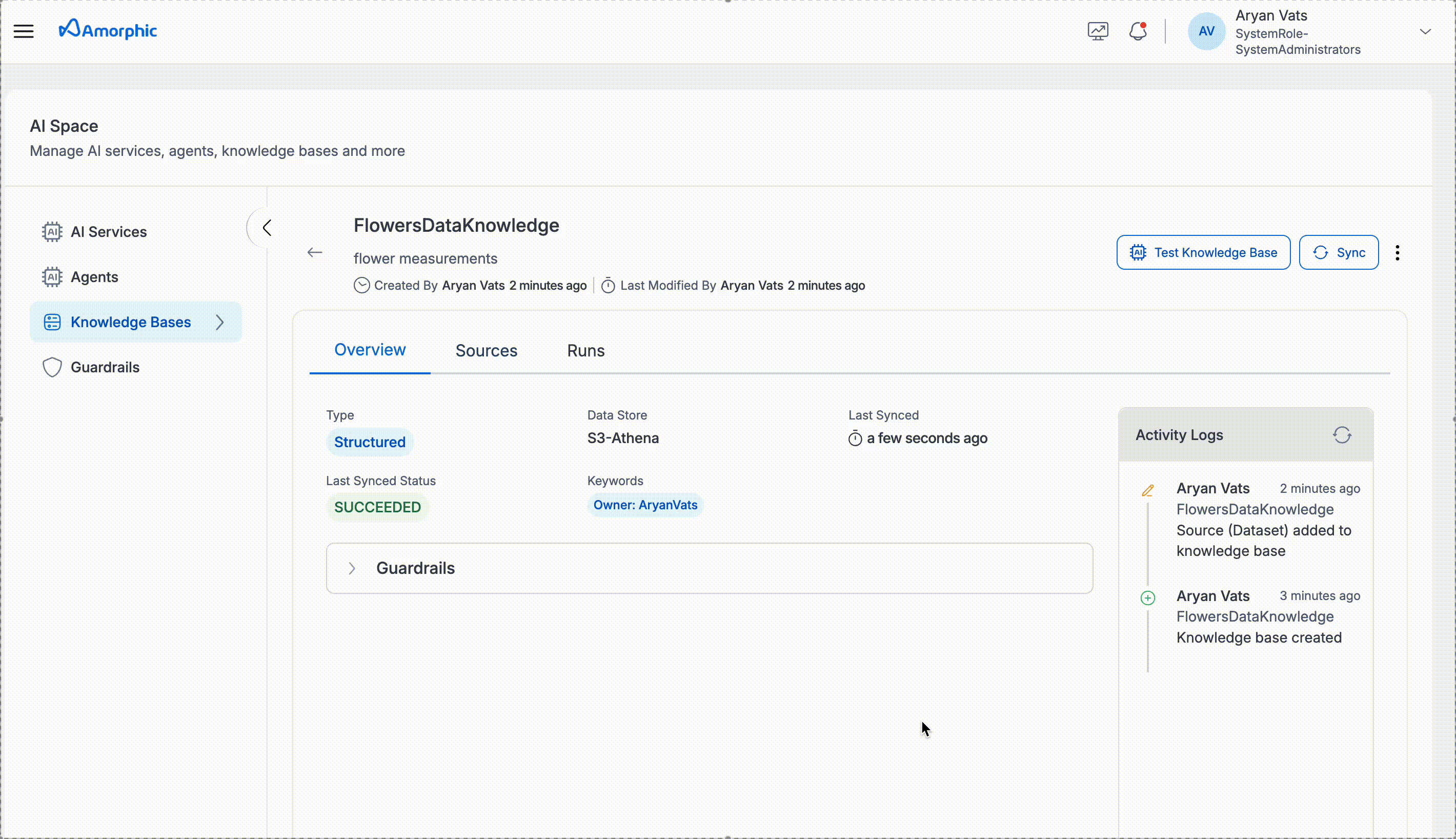

Query Knowledge Base

The Structured Knowledge Base provides an intuitive interface for querying your structured data using natural language, which is automatically converted to SQL queries.

Step	Field	Description
1	Access Query Interface	Select your target knowledge base from the list Click the Test Knowledge Base button in the top right A chat interface window will appear
2	Select AI Model	Choose an appropriate AI model for your query Recommended models for optimal results:   • Claude-4-Sonnet   • Other advanced models
3	Submit Query	Send the query and receive a natural-language result based on SQL execution results

Note

Important considerations:

• Queries work on all accessible tables within the knowledge base's connected database
• Use specific, well-formed questions for better SQL generation accuracy
• All responses include the generated SQL query for verification
• Access control ensures users only receive information from datasets they have permission to view
• The system validates dataset access before returning query results
• Only one SQL query is executed per response

Best Practices

For optimal results:

• Use advanced models like Claude-4-Sonnet or other advanced models
• Craft clear and specific prompts that translate well to SQL
• Start with broader queries, then refine as needed
• Use table and column names in your queries when possible for better accuracy

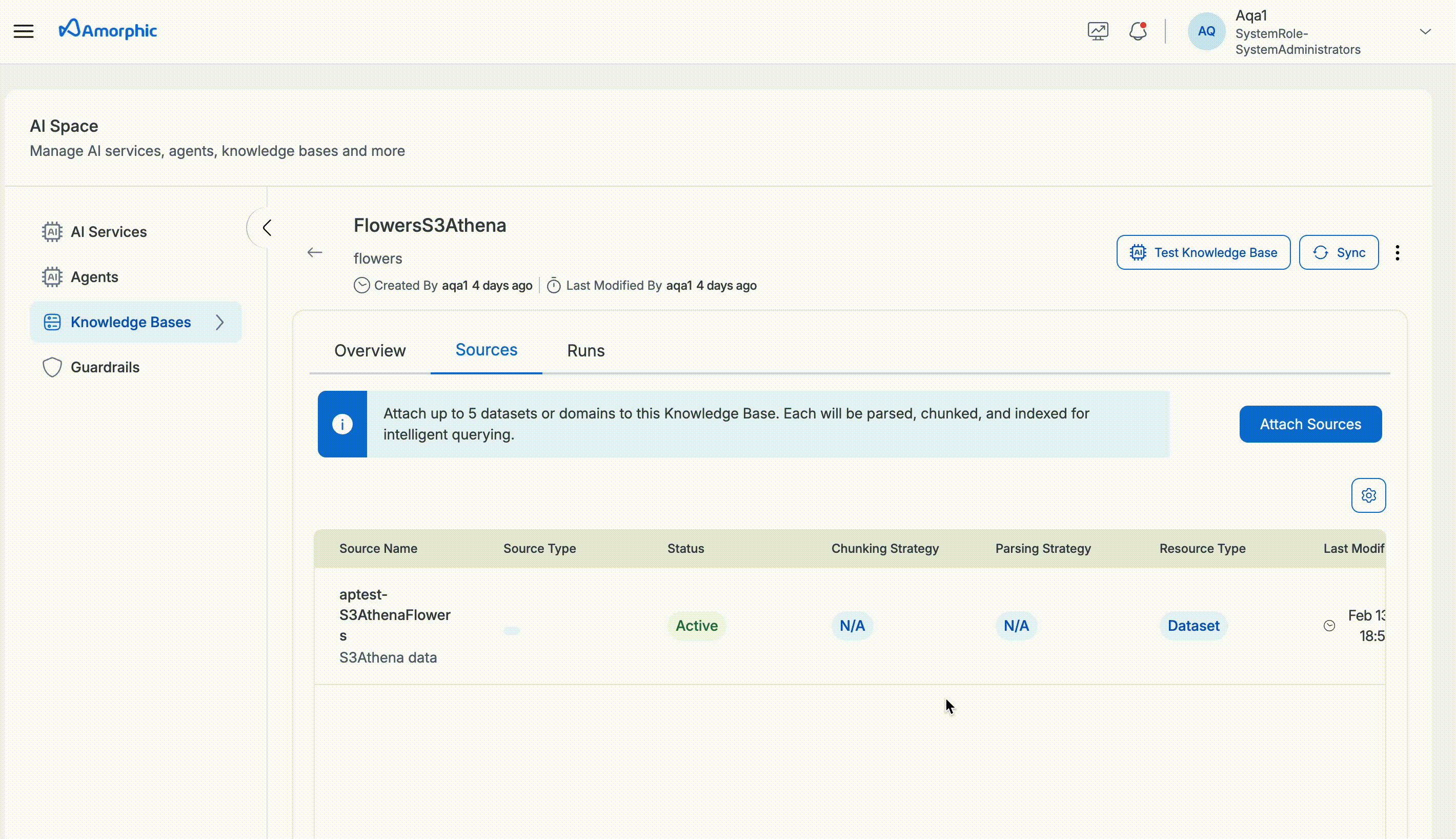

Remove Sources

To remove sources from a structured knowledge base:

1. Navigate to Knowledge Base: Go to the knowledge base details page
2. Select Remove Sources: Choose the option to remove data sources
3. Confirm Removal: The data sources will be detached from the knowledge base
4. Clean Up: Associated permissions and metadata will be cleaned up automatically

Note

• Removing sources will make their content unavailable for querying
• The operation cannot be undone
• Associated permissions (Redshift GRANTs) will be revoked automatically
• Metadata will be cleaned up automatically

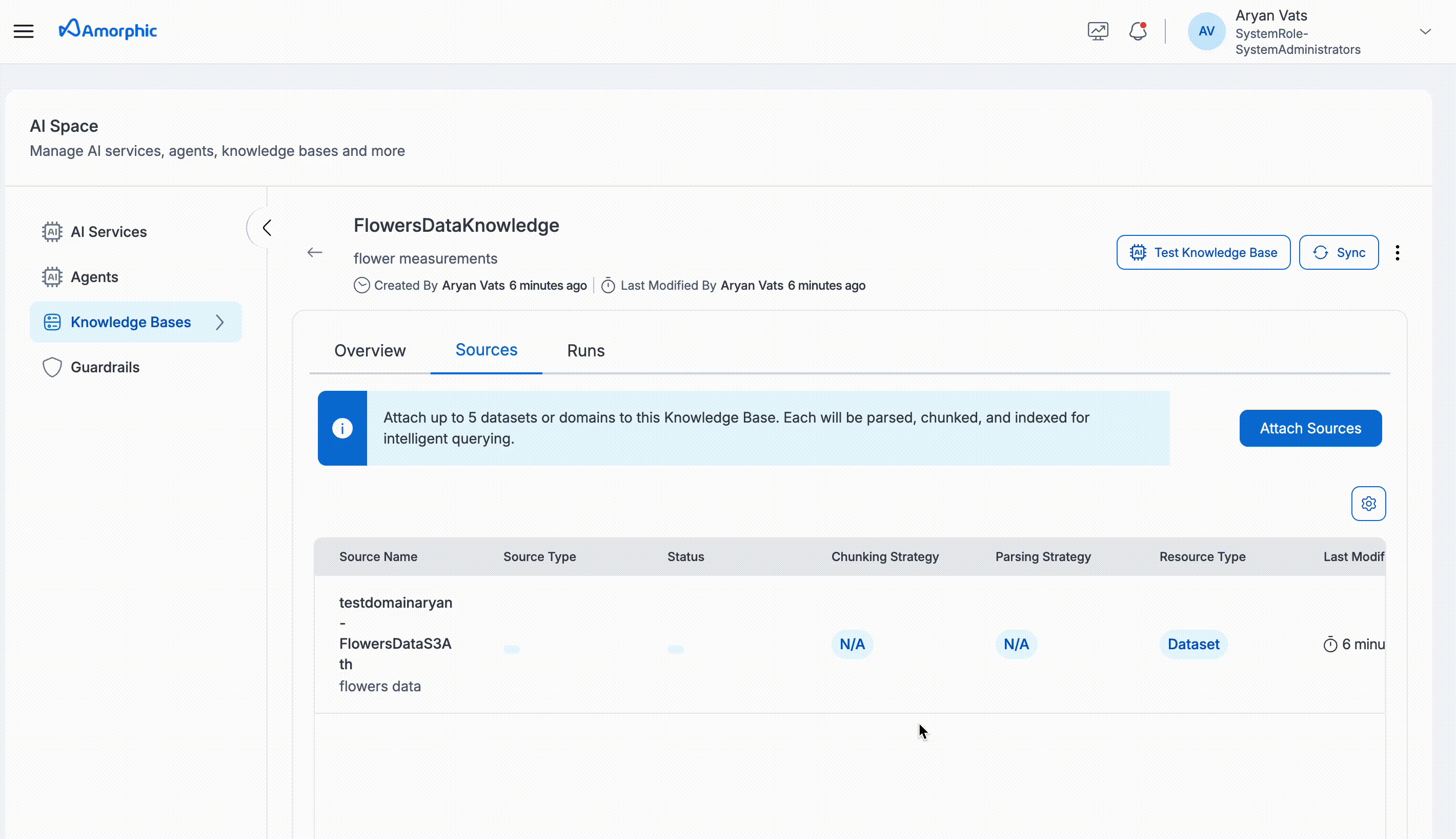

Delete Knowledge Base

To delete a structured knowledge base:

1. Navigate to Knowledge Base: Go to the knowledge base details page
2. Select Delete Option: Click the delete button in the top right
3. Confirm Deletion: Review the warning message and confirm deletion
4. Automatic Cleanup: The system will automatically:
   • Remove all associated data sources
   • Revoke Redshift user permissions (GRANTs)
   • Clean up related metadata and IAM permissions

warning

This action is permanent and cannot be undone. Make sure you want to delete the knowledge base before confirming.

Note

The knowledge base must be in Active state in order to perform the delete operation on it.

Access Control and Permissions

The system implements robust access control:

• Owner Access: Full control over knowledge base operations
• Editor Access: Can modify and sync knowledge bases, including adding/removing sources and updating settings, but cannot delete knowledge bases
• Reader Access: Can query knowledge bases
• Resource-level Permissions: Inherited from underlying data sources
• SQL Query Validation: The system validates user access to all datasets referenced in generated SQL queries before returning results

Security Considerations

• The knowledge base uses read-only permissions (SELECT only)
• Redshift user permissions are managed automatically when sources are added/removed
• For S3-Athena sources, Glue catalog and S3 permissions are managed automatically
• Access control is enforced at query time, ensuring users only see data they have permission to access

Best Practices

To get the most out of Structured KnowledgeBase, consider these best practices:

1. Organize Sources

   • Group related datasets logically
   • Use descriptive names for knowledge bases
   • Consider organizing data into domains for specific types of data

2. Optimize Sync Operations

   • Monitor sync status and address failures promptly
   • Sync after schema changes to ensure queries reflect latest structure

3. Query Optimization

   • Be specific in your questions for better SQL generation
   • Reference table and column names when possible
   • Use context from previous queries when relevant

4. Access Management

   • Regularly review and update access permissions
   • Monitor usage patterns and adjust accordingly
   • Implement least-privilege access principles

Improving Query Quality

Using clear and descriptive table and column names will significantly improve the knowledge base's ability to generate accurate SQL queries. Consider following database naming conventions and adding table/column comments when possible.

Supported Data Sources

Data Source Type	Description
Dataset	Connect to Redshift or s3athena datasets, depending on data store type of the knowledgebase
Domain	Connect to a domain and access all datasets of data store type matching the KnowledgeBase within the domain

Current Limitations

• Only one tenant can be used for a structured KB with data store type redshift
• Redshift view type datasets are not supported and cannot be queried
• Only one SQL query is executed per response
• Sync operations have a maximum duration of 6 hours; if a timeout occurs, try syncing again
• All sources must be of the same data store type, matching the knowledgebase (either all Redshift or all S3-Athena)
