Compliance Dashboard

Trace centralizes security and compliance management through an intuitive dashboard that displays compliance scores and security findings. Organizations can monitor multiple compliance frameworks, track remediation progress, and maintain visibility into their security posture from a single interface.

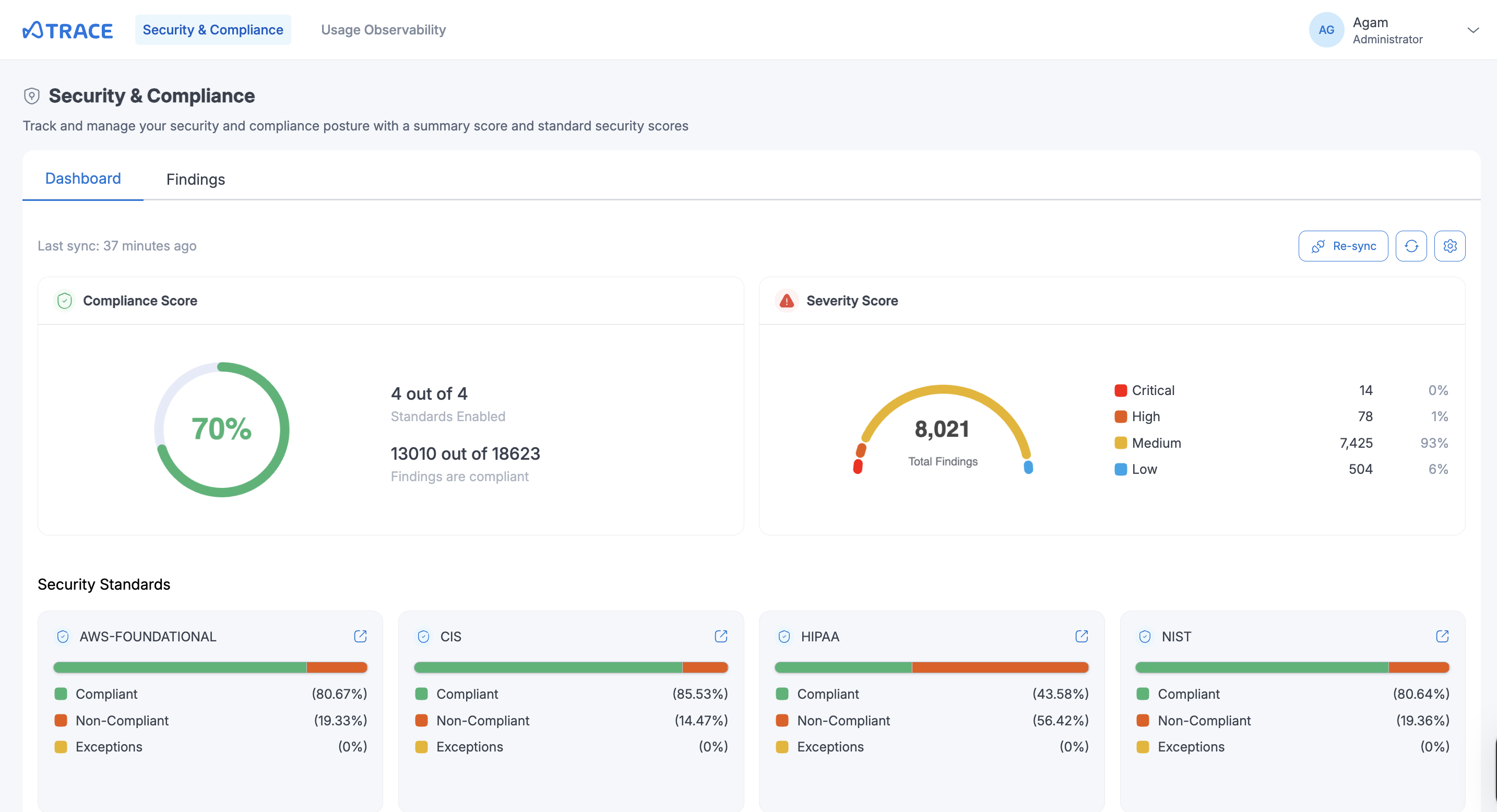

Dashboard Features

The main dashboard displays essential compliance information at a glance:

• Compliance Score: Overall percentage showing how many findings across all standards are compliant, with a visual indicator of the organization's security posture
• Severity Score: Total count of security findings categorized by severity levels (Critical, High, Medium, Low) to help prioritize remediation efforts
• Security Standards: Individual compliance percentages for each enabled standard (AWS Foundational, CIS, HIPAA, NIST) with visual progress bars showing compliant, non-compliant and exceptions in that particular standard. Click on any section (Compliant, Non-Compliant, Exceptions) to automatically navigate to the Findings page filtered by that specific standard and status

HIPAA Scoring

HIPAA is not included in the overall Compliance Score and Severity Score, and is assessed separately. This does not affect the HIPAA compliance status.

NOT_AVAILABLE Compliance Status

Findings with a Compliance Status of NOT_AVAILABLE are ignored and not considered when calculating the compliance score, compliance percentages for standards and are also excluded while generating the findings. This ensures that the compliance metrics accurately reflect only actionable findings and avoids misleading compliance percentages.

Compliance Standards Management

Supported Standards

Trace supports multiple compliance frameworks:

• AWS Foundational Security Best Practices
• HIPAA (Health Insurance Portability and Accountability Act)
• NIST (National Institute of Standards and Technology Special Publication 800-53 Revision 5)
• CIS (Center for Internet Security AWS Foundations Benchmark v3.0.0)

HIPAA Compliance

HIPAA compliance monitoring has special considerations:

• Enhanced Security: HIPAA monitoring includes additional security controls and checks
• Deployment Process: Enabling HIPAA monitoring may take longer than other standards as additional security measures are put in place
• Status Notifications: Users receive email updates about the HIPAA monitoring activation process

Standards Configuration

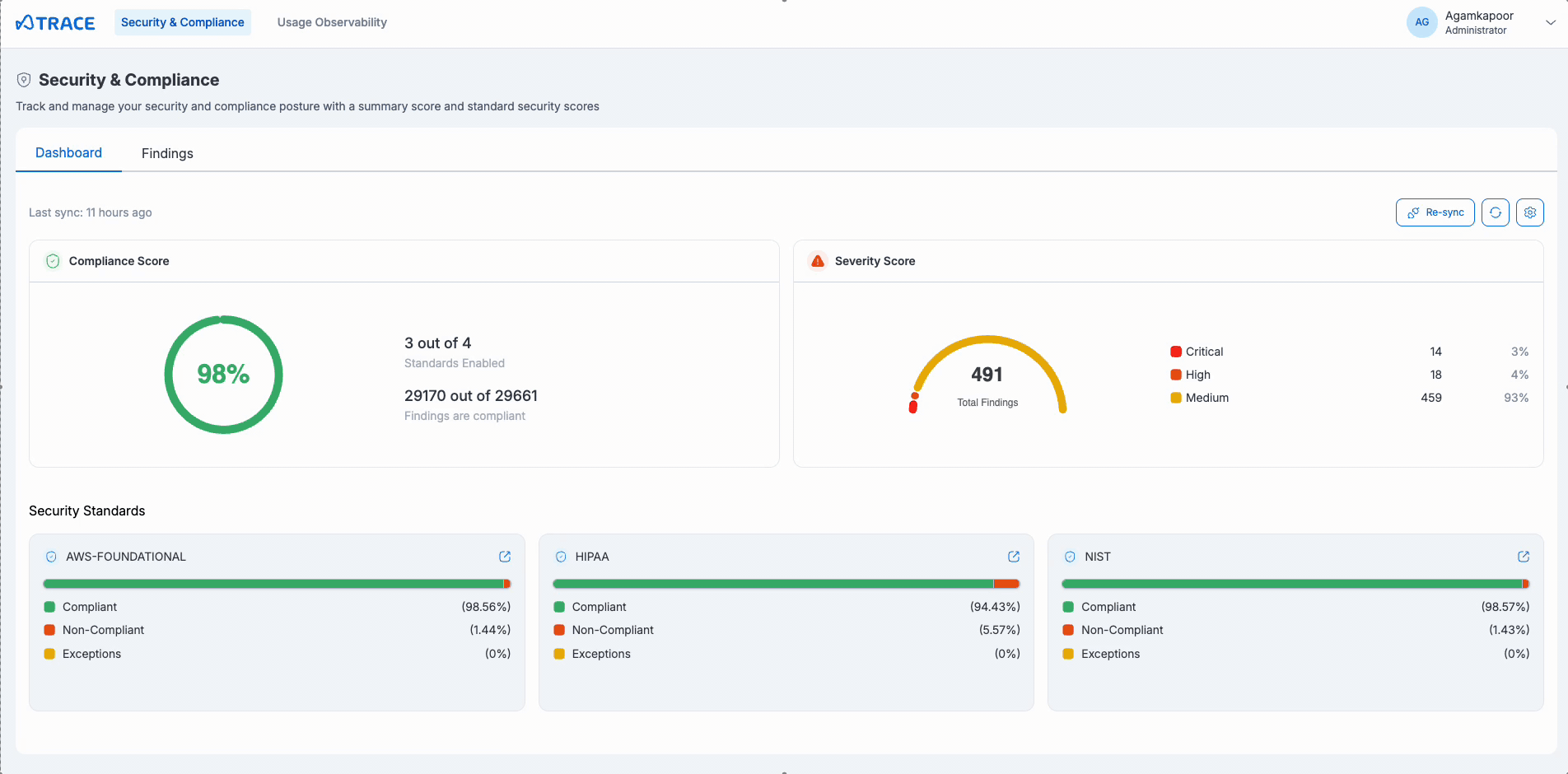

Enabling a Compliance Standard

To activate monitoring for a compliance framework:

1. Navigate to the Security & Compliance section
2. Go to the Dashboard tab
3. Click on the top right gear button
4. Find the desired standard in the standards list
5. Click Enable to activate monitoring
6. The system will begin collecting compliance data immediately

Disabling a Compliance Standard

To deactivate a compliance framework:

1. Access the Security & Compliance dashboard
2. Locate the active standard
3. Click Disable next to the standard name
4. Confirm the action in the dialog box
5. Data collection for that standard will stop
6. By default AWS Foundational standard is always turned on

Recommendation

Enable all relevant compliance standards for the organization to get comprehensive security coverage.

Data Synchronization

Trace keeps compliance information up-to-date through automatic monitoring and manual refresh options:

• Automatic Updates: Real-time monitoring with scheduled sync and event-driven updates
• Manual Refresh: Use the Re-sync Index button on the dashboard to trigger immediate updates. This is particularly useful after enabling or disabling compliance standards, as it ensures the dashboard reflects the current configuration and collects data from newly activated standards
• Status Propagation: Changes in AWS Security Hub automatically reflect in Trace post re-sync operation

Please Note

Changes to compliance standards and finding statuses may take several minutes to appear in the dashboard as the system updates compliance information.
