Athena Datasets

Athena Datasets allows users to store structured data in Glue tables and files in Amazon S3 and run SQL queries on the data. Data validation can be enabled to check for corrupt data, and the playground can be used to run queries on the dataset.

How does it work?

With Athena datasets as the target location, Amorphic provides users the ability to store CSV/TSV/XSLX/JSON/Parquet files in S3 without the overhead of maintaining a data warehousing solution, for cost effectiveness.

Data Validation is enabled by default for S3Athena target location, but can be enabled/disabled at any time. Each file is partially sampled/read and every column is validated against the schema uploaded to the dataset while registering. This helps users quickly detect and perform data correction on corrupt or invalid data files, though it takes a few extra seconds per file and there is an additional charge per file.

As of now, users can register structured data such as CSV, TSV, XLSX, JSON and Parquet files, and validate data types such as Strings/Varchar, Integers, Double, Boolean, Date and Timestamp. To accommodate complex data structures, we recommend enclosing them in quote chars and registering the column schema as String/Varchar. Once loaded, users can perform ETL on top of the data and cast them appropriately.

The CSV Parser/SerDe recommended by AWS Athena has the following limitations:

• It does not support embedded line breaks in CSV files, nor does it support empty fields in columns defined as a numeric data type.

As per the AWS Documentation, one workaround to achieve this is to import them as string columns and create views on top of it by casting them to the required data types.

Creating S3-Athena Datasets

User can create new S3-Athena Datasets by using either of the three ways:

• Using already defined S3-Athena System Templates
• Importing required JSON payload
• Using the form and entering the required details

When the user is creating the dataset from scratch using the form,

• Select target location as s3-athena.
• Supported file types - CSV/TSV/XSLX/JSON/Parquet

Registering S3-Athena Datasets

• After creating the dataset, we need to register the schema for it.

Load Athena Datasets

Athena Datasets provides users with a cost-effective solutions to store their structured data. All loaded datasets are immediately available for analysis using the Run Query tab in the Amorphic console. The advantage of using Athena datasets is that it provides auto data validation on each file that is uploaded, without the need for any additional ETL process.

Query Datasets

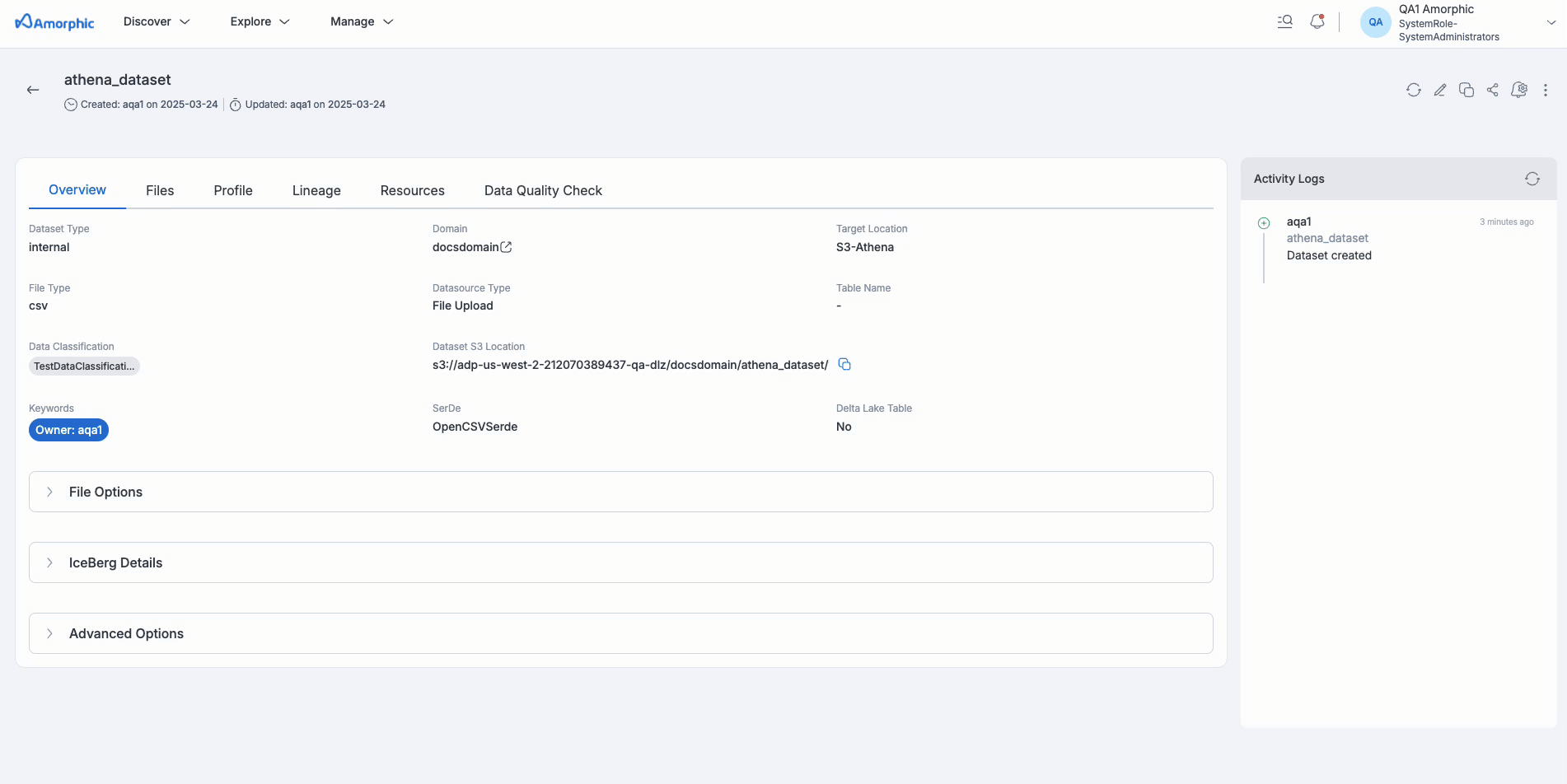

Once we have loaded data into Athena datasets, it is ready for the user to query and analyze directly from the Run Query tab. The following animation demonstrates how a user can run a sample query on Athena datasets.

For Datasets with JSON file type:

• AWS Limitations
  • It uses the OpenX JSON SerDe with the following limitations:
    • It expects JSON data to be in a single line (not formatted), with records separated by a new line character.
    • Comma character is not allowed at the end of each line.
    • The full data in the file should not be enclosed in square brackets.
  • Views are not supported on top of S3-Athena JSON datasets.
• Amorphic feature limitations (Not Applicable)
  • Malware Detection
  • Data Profiling

Below is an example of an invalid JSON file:

[
    {
    "EmailId": "test-cwdl@cloudwick.com",
    "IsAdmin": "no",
    "UserId": "testuser"
    },
    {
    "EmailId": "test1-cwdl@cloudwick.com",
    "IsAdmin": "no",
    "UserId": "testuser1"
    }
]

Below is an example of a valid JSON file:

{ "EmailId": "test-cwdl1@cloudwick.com", "IsAdmin": "no", "UserId": "testuser1" }
{ "EmailId": "test-cwdl2@cloudwick.com", "IsAdmin": "no", "UserId": "testuser2" }
{ "EmailId": "test-cwdl3@cloudwick.com", "IsAdmin": "yes", "UserId": "testuser3" }
{ "EmailId": "test-cwdl4@cloudwick.com", "IsAdmin": "no", "UserId": "testuser4" }
{ "EmailId": "test-cwdl5@cloudwick.com", "IsAdmin": "yes", "UserId": "testuser5" }

Note

For JSON files, if dataset validation is enabled then column names in the files must exactly match the column names in the dataset schema

S3-Athena Datasets use case

An example of how to use Athena Datasets for an e-commerce company that wants to look at customer purchase data.

The company keeps customer purchase details within CSV files stored in Amazon S3. They use Athena Datasets to register the data as a dataset and use SQL queries to find out useful information, such as the most popular products, the average order value, and the places customers are from. Before looking at the data, they use the data validation feature to check for any bad or wrong data in the files. This helps them quickly find and fix any problems in the data. Once the data is checked, they can use the playground to analyze the data and make decisions based on the results.

Athena Datasets enables companies to store, validate, and analyze structured data in Amazon S3, aiding them to make better decisions based on data insights.
